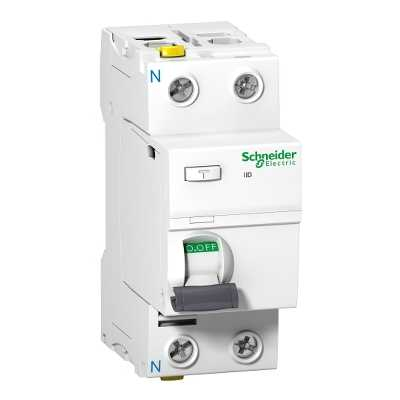

SCHNEIDER ELECTRIC IID 40A/30mA/AC 2P Wyłącznik Różnicowy 40A 30mA 2m AC 10kA ACTI 9

The SCHNEIDER ELECTRIC IID 40A/30mA/AC 2P is a state-of-the-art residual current circuit breaker (RCCB) from the Acti 9 range. It features a modular design, ensuring reliable protection and ease of installation. This RCCB is equipped with a 2-pole configuration, supporting a rated current of 40A across an operating voltage ranging from 220VAC to 240VAC.

It boasts a significant making and breaking capacity of 1500A (Im/IΔm), providing robust electrical safety in a variety of applications. The device demonstrates strong durability, with electrical endurance up to 15,000 cycles and mechanical endurance up to 20,000 cycles.

For added safety, the degree of protection provided is IP20, or IP40 when housed within an enclosure. The RCCB is DIN rail mountable, making it suitable for a wide range of installation environments. Positioned in the electrical system as an outgoer, it provides earth leakage protection of type AC.

Moreover, this product conforms rigorously to EN/IEC 61008-1 standards, ensuring its reliability and safety in domestic and commercial settings.
